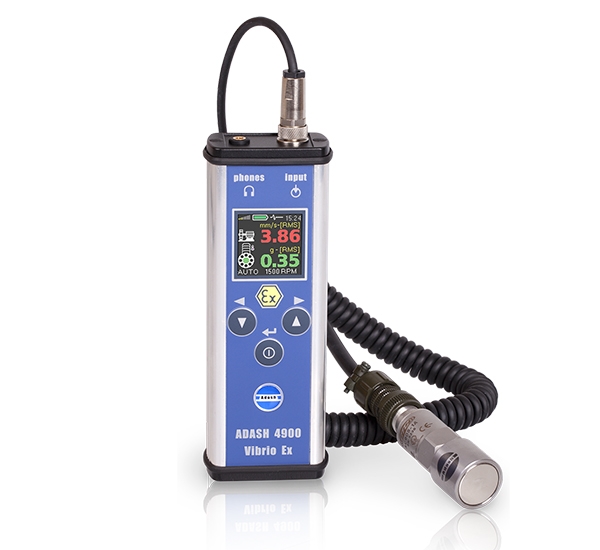

Máy đo độ rung A4900 ADASH
-
Input:
- 1 x ICP® powered Ex accelerometer (AC90x or AC91x)
- Input range:
- 60 g PEAK with standard 100 mV/g sensor
- Measurements:
- Velocity RMS: 10 - 1 000 Hz [mm/s, ips]
Velocity PEAK: 10 - 1 000 Hz [mm/s, ips]
Acceleration RMS: 500 - 16 000 Hz [g]
Acceleration Peak: 500 - 16 000 Hz [g]
Velocity time: 1 - 1 000 Hz [mm/s, ips], 2048 samples *
Velocity spectrum: 1 - 1 000 Hz [mm/s, ips], 800 lines
Acceleration time: 1 - 16 000 Hz [g], 2048 samples*
Acceleration spectrum: 1 - 16 000 Hz [g], 800 lines*
Acceleration Demod-Envelope RMS: 500 - 16 000 Hz [g]
Acceleration Demod-Envelope Peak: 500 - 16 000 Hz [g]*
Acceleration Demod-Envelope time: 500 - 16 000 Hz [g], 2048 samples
Acceleration Demod-Envelope spectrum: 500 - 16 000 Hz [g], 800 lines, range 400 Hz*
Displacement RMS: 2 - 100 Hz [µm, mil]
Displacement 0-Peak: 2 - 100 Hz [µm, mil]
Displacement Peak-Peak: 2 - 100 Hz [µm, mil]
* available in DDS software for Vibrio
- Other functions:
- Vibration stethoscope
- Memory:
- 4 MB for data
120960 overall values
or 900 measurements of 800 line spectra
or 2048 sample time signals
- Data storing:
- Off-Route
Route with DDS software (free download)
- Interface:
- USB 3.0, 2.0 compatible
- Software:
- Free version of DDS software (limited database size)
- Display:
- Colour graphic OLED display 128x128 pixels, diagonal 1.5“ (38 mm)
- Output:
- 1 x AC signal 8 Ω / 0,5 W for external headphones (signal listening)
- Power:
- 2 x AA 1.5V batteries (Energizer L91 Ultimate Lithium - 7 hours operation)
- Temperature:
- Operating: -20°C to 50°C
- Dimensions:
- 150 x 60 x 35 mm
- Weight:
- 330 g including batteries (without cable, sensor and magnet)
540 g including batteries, cable, sensor and magnet
- Accessories:
- Ex vibration sensor (AC90x or AC91x), coiled cable to connect vibration sensor, magnetic base for vibration sensor, headphones with 3.5 mm jack, special USB cable, measuring tip for manual pressure on the sensor, transport case, USB flash drive with the manual
